🍑 Arduino模拟ModBus协议

壹丨需求

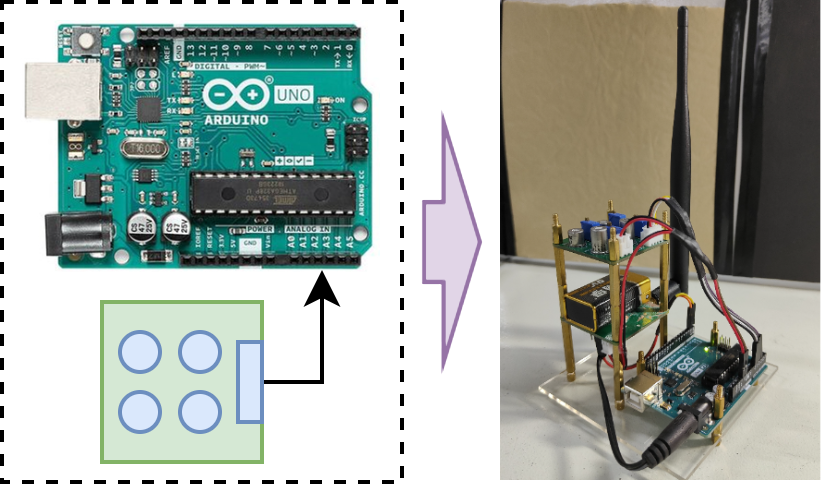

使用Arduino连接四路/六路气体传感器，硬件连接如图：

使用模拟口采集数据，上位机与Arduino之间模拟ModBus协议的04功能码，实现数据传输12

叁丨程序设计（Arduino端）1

定义相关变量：

// 一帧数据的最大字节数量
#define bufferSize 8
// 用于保存接收或发送的数据
unsigned char frame[bufferSize];
// 校验位分配内存
unsigned int crc16;
// 数据长度
unsigned int dataSize = 0;
// 计算应答的数据长度
unsigned char responseSize = 0;
//上次阅读有数据的时间
unsigned long lastReadTime;
unsigned int temp = 0;
const unsigned char analogPins[] = {A0, A1, A2, A3, A4, A5, A6};

定义函数：

// CRC校验函数
unsigned int calculateCRC(unsigned char *regs, unsigned char arraySize);
// 应答函数
void my_response(unsigned char frame[]);

CRC校验函数：

const unsigned char c_aucCRCHi[] = {
        0x00, 0xC1, 0x81, 0x40, 0x01, 0xC0, 0x80, 0x41, 0x01, 0xC0,
        0x80, 0x41, 0x00, 0xC1, 0x81, 0x40, 0x01, 0xC0, 0x80, 0x41,
        0x00, 0xC1, 0x81, 0x40, 0x00, 0xC1, 0x81, 0x40, 0x01, 0xC0,
        0x80, 0x41, 0x01, 0xC0, 0x80, 0x41, 0x00, 0xC1, 0x81, 0x40,
        0x00, 0xC1, 0x81, 0x40, 0x01, 0xC0, 0x80, 0x41, 0x00, 0xC1,
        0x81, 0x40, 0x01, 0xC0, 0x80, 0x41, 0x01, 0xC0, 0x80, 0x41,
        0x00, 0xC1, 0x81, 0x40, 0x01, 0xC0, 0x80, 0x41, 0x00, 0xC1,
        0x81, 0x40, 0x00, 0xC1, 0x81, 0x40, 0x01, 0xC0, 0x80, 0x41,
        0x00, 0xC1, 0x81, 0x40, 0x01, 0xC0, 0x80, 0x41, 0x01, 0xC0,
        0x80, 0x41, 0x00, 0xC1, 0x81, 0x40, 0x00, 0xC1, 0x81, 0x40,
        0x01, 0xC0, 0x80, 0x41, 0x01, 0xC0, 0x80, 0x41, 0x00, 0xC1,
        0x81, 0x40, 0x01, 0xC0, 0x80, 0x41, 0x00, 0xC1, 0x81, 0x40,
        0x00, 0xC1, 0x81, 0x40, 0x01, 0xC0, 0x80, 0x41, 0x01, 0xC0,
        0x80, 0x41, 0x00, 0xC1, 0x81, 0x40, 0x00, 0xC1, 0x81, 0x40,
        0x01, 0xC0, 0x80, 0x41, 0x00, 0xC1, 0x81, 0x40, 0x01, 0xC0,
        0x80, 0x41, 0x01, 0xC0, 0x80, 0x41, 0x00, 0xC1, 0x81, 0x40,
        0x00, 0xC1, 0x81, 0x40, 0x01, 0xC0, 0x80, 0x41, 0x01, 0xC0,
        0x80, 0x41, 0x00, 0xC1, 0x81, 0x40, 0x01, 0xC0, 0x80, 0x41,
        0x00, 0xC1, 0x81, 0x40, 0x00, 0xC1, 0x81, 0x40, 0x01, 0xC0,
        0x80, 0x41, 0x00, 0xC1, 0x81, 0x40, 0x01, 0xC0, 0x80, 0x41,
        0x01, 0xC0, 0x80, 0x41, 0x00, 0xC1, 0x81, 0x40, 0x01, 0xC0,
        0x80, 0x41, 0x00, 0xC1, 0x81, 0x40, 0x00, 0xC1, 0x81, 0x40,
        0x01, 0xC0, 0x80, 0x41, 0x01, 0xC0, 0x80, 0x41, 0x00, 0xC1,
        0x81, 0x40, 0x00, 0xC1, 0x81, 0x40, 0x01, 0xC0, 0x80, 0x41,
        0x00, 0xC1, 0x81, 0x40, 0x01, 0xC0, 0x80, 0x41, 0x01, 0xC0,
        0x80, 0x41, 0x00, 0xC1, 0x81, 0x40
};

/* CRC低位字节值表*/
const unsigned char c_aucCRCLo[] = {
        0x00, 0xC0, 0xC1, 0x01, 0xC3, 0x03, 0x02, 0xC2, 0xC6, 0x06,
        0x07, 0xC7, 0x05, 0xC5, 0xC4, 0x04, 0xCC, 0x0C, 0x0D, 0xCD,
        0x0F, 0xCF, 0xCE, 0x0E, 0x0A, 0xCA, 0xCB, 0x0B, 0xC9, 0x09,
        0x08, 0xC8, 0xD8, 0x18, 0x19, 0xD9, 0x1B, 0xDB, 0xDA, 0x1A,
        0x1E, 0xDE, 0xDF, 0x1F, 0xDD, 0x1D, 0x1C, 0xDC, 0x14, 0xD4,
        0xD5, 0x15, 0xD7, 0x17, 0x16, 0xD6, 0xD2, 0x12, 0x13, 0xD3,
        0x11, 0xD1, 0xD0, 0x10, 0xF0, 0x30, 0x31, 0xF1, 0x33, 0xF3,
        0xF2, 0x32, 0x36, 0xF6, 0xF7, 0x37, 0xF5, 0x35, 0x34, 0xF4,
        0x3C, 0xFC, 0xFD, 0x3D, 0xFF, 0x3F, 0x3E, 0xFE, 0xFA, 0x3A,
        0x3B, 0xFB, 0x39, 0xF9, 0xF8, 0x38, 0x28, 0xE8, 0xE9, 0x29,
        0xEB, 0x2B, 0x2A, 0xEA, 0xEE, 0x2E, 0x2F, 0xEF, 0x2D, 0xED,
        0xEC, 0x2C, 0xE4, 0x24, 0x25, 0xE5, 0x27, 0xE7, 0xE6, 0x26,
        0x22, 0xE2, 0xE3, 0x23, 0xE1, 0x21, 0x20, 0xE0, 0xA0, 0x60,
        0x61, 0xA1, 0x63, 0xA3, 0xA2, 0x62, 0x66, 0xA6, 0xA7, 0x67,
        0xA5, 0x65, 0x64, 0xA4, 0x6C, 0xAC, 0xAD, 0x6D, 0xAF, 0x6F,
        0x6E, 0xAE, 0xAA, 0x6A, 0x6B, 0xAB, 0x69, 0xA9, 0xA8, 0x68,
        0x78, 0xB8, 0xB9, 0x79, 0xBB, 0x7B, 0x7A, 0xBA, 0xBE, 0x7E,
        0x7F, 0xBF, 0x7D, 0xBD, 0xBC, 0x7C, 0xB4, 0x74, 0x75, 0xB5,
        0x77, 0xB7, 0xB6, 0x76, 0x72, 0xB2, 0xB3, 0x73, 0xB1, 0x71,
        0x70, 0xB0, 0x50, 0x90, 0x91, 0x51, 0x93, 0x53, 0x52, 0x92,
        0x96, 0x56, 0x57, 0x97, 0x55, 0x95, 0x94, 0x54, 0x9C, 0x5C,
        0x5D, 0x9D, 0x5F, 0x9F, 0x9E, 0x5E, 0x5A, 0x9A, 0x9B, 0x5B,
        0x99, 0x59, 0x58, 0x98, 0x88, 0x48, 0x49, 0x89, 0x4B, 0x8B,
        0x8A, 0x4A, 0x4E, 0x8E, 0x8F, 0x4F, 0x8D, 0x4D, 0x4C, 0x8C,
        0x44, 0x84, 0x85, 0x45, 0x87, 0x47, 0x46, 0x86, 0x82, 0x42,
        0x43, 0x83, 0x41, 0x81, 0x80, 0x40
};

unsigned int calculateCRC(unsigned char *regs, unsigned char arraySize) {
    unsigned int uiCRCHi = 0xFF;              /* 高CRC字节初始化  */
    unsigned int uiCRCLo = 0xFF;              /* 低CRC 字节初始化 */
    unsigned char uIndex;                      /* CRC循环中的索引  */
    while (arraySize--) {                  /* 传输消息缓冲区   */
        uIndex = (char) uiCRCHi ^ *regs++; /* 计算CRC          */
        uiCRCHi = uiCRCLo ^ (int) c_aucCRCHi[uIndex];
        uiCRCLo = (int) c_aucCRCLo[uIndex];
    }
    return (uiCRCHi << 8 | uiCRCLo);
}

应答函数：

void my_response(unsigned char frame[]) {
    crc16 = ((frame[bufferSize - 2] << 8) | frame[bufferSize - 1]);
    //校验通过后执行
    if (calculateCRC(&frame[0], bufferSize - 2) == crc16) {
        dataSize = ((frame[4] << 8) | frame[5]);
        responseSize = 5 + dataSize * 2;
        unsigned char response[responseSize];
        response[0] = frame[0]; //地址码
        response[1] = frame[1];  //功能码
        response[2] = dataSize * 2;  //数据长度
        unsigned int index = 3;
        for (unsigned int i = 0; i < dataSize; i++) {
            temp = analogRead(analogPins[i]);
            response[index] = temp >> 8;
            index++;
            response[index] = temp & 0xFF;
            index++;
        }
        crc16 = calculateCRC(&response[0], responseSize - 2);
        response[responseSize - 2] = crc16 >> 8;  //填写校验位
        response[responseSize - 1] = crc16 & 0xFF;
        Serial.write(&response[0], responseSize);
        responseSize = 0;
        lastReadTime = micros();  //接收到字符重启t3.5
    }
}

主函数：

void setup() {
    // 启动串口通讯
    Serial.begin(115200);
    Serial.println();
}

//01 04 00 01 00 04 __ __
//01 04 __ 03 FF 03 FF 03 FF 03 FF __ __
void loop() {
    if (Serial.available()) {
        Serial.readBytes(frame, bufferSize);
        lastReadTime = micros();  //接收到字符重启t3.5
        my_response(frame);
    }
}
